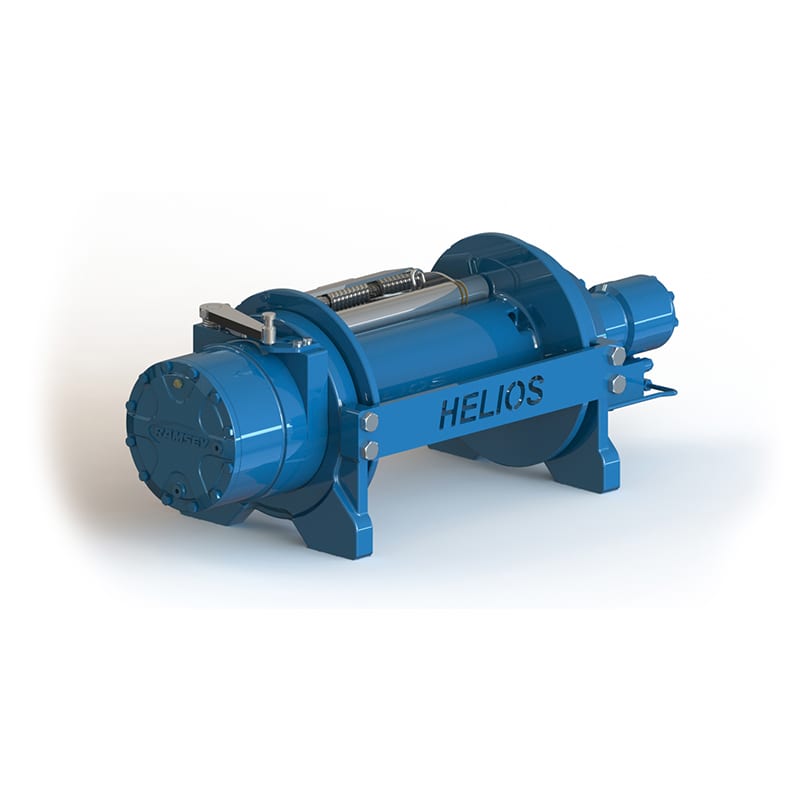

Helios 20000
Ramsey Winch is excited to announce the official release of the NEW HELIOS 20000 Heavy Duty Planetary Winch. This winch was developed to meet and exceed the demands of the industrial and towing & recovery markets specifically targeting the heavy-duty trailer market segment. This winch is approved to use either wire rope or synthetic rope.
Pull: 20,000 Lbs / 9,072 Kg
Speed: 37.5 Ft/Min / 11.4 M/Min
Cable Capacity: 155 Ft / 47.2 M (short), 260 Ft / 79.2 M (std.)
Features & Benefits
• Synthetic Rope Approved
– 12 strand (HMPE), commonly known as Dyneema
– Maximum rope capacity is 260 ft.
• Compact Design
– same mounting as the competition
• Foot Mount or Mid Mount
• High Efficiency Planetary Gear Set
• Reliable Negative Draft Clutch
– Manual or Air
• Spring Applied, Hydraulic Released Disc Brake
• Integrated Roller Tensioner
– using heavy-duty torsion spring force
• Over or Under Wound Rope Availability
• Optional: Cable and Hook Installed
– additional information coming soon
• Meets SAE J706
• Made in the USA
APPLICATIONS:
Trailer
Specialty Vehicle
